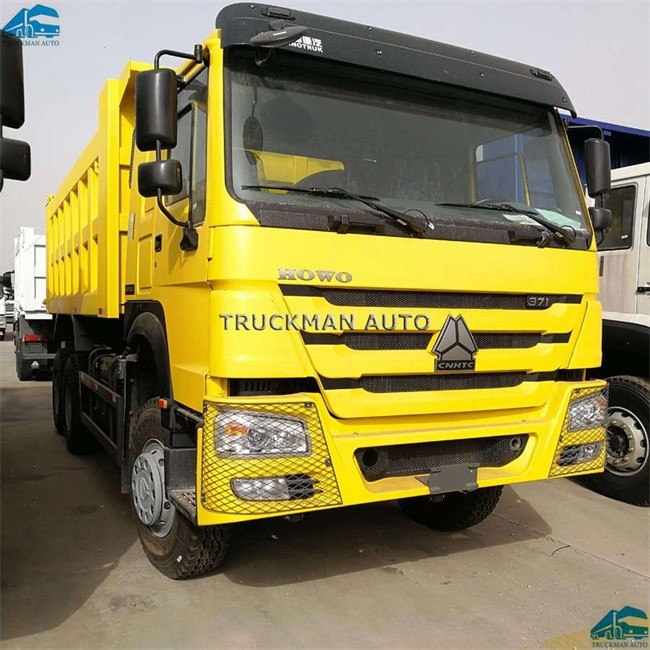

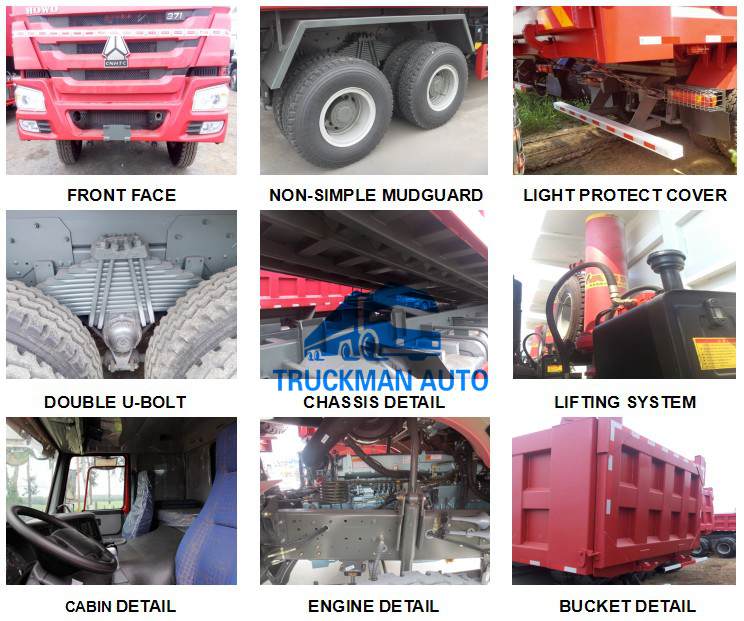

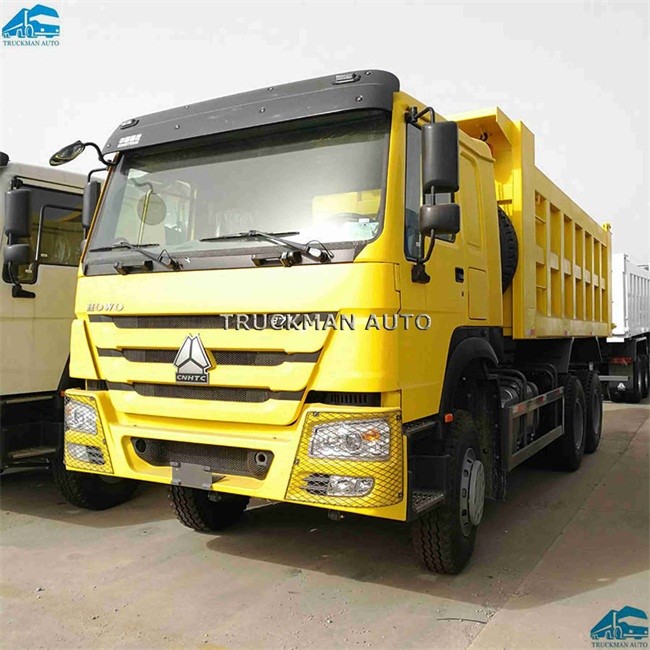

2020 Year SINOTRUK HOWO Heavy Duty Dump Tipper Truck With 371HP Engine
1. HOWO 6x4 Dump Truck Main Details.
-. Engine from 371HP to 420HP.
-. With one bed cabin and A/C. right hand drive cabin could optional
-. 16-20m3 big cargo box, middle lifting or front lifting.
-. Other name: HOWO tipper truck, howo dumper truck, howo tipping truck.
| Dimensions (unloaded) | 8300x2560x3450mm |
| Cargo body size(mm) | 5800x2300x1500, T-middle lift, bottom 8mm, side 6mm |
| Approaching angle/departure angle (°) | 19/27 |
| Overhang (front/rear) (mm) | 1500/1560 |
| Wheel base (mm) | 3600+1350 |
| Max speed (kph) | 75 |
| Curb weight (kg) | 12380 |
| Loading weight (kg) | 12490 |
| Engine | Model | WD615.47, water-cooled, four strokes,
6 cylinders in line with water cooling, turbocharged and interfolding, directly injection |
| Fuel type | Diesel |
| Horse power, max (kW/rpm) | 371HP,273/2200 |
| Emission | Euro 2 |
| Fuel tanker capacity | 300 |
| Transmission | Model | HW19710 |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Steering system | Model | ZF8118 |
| Front axle | HF9 Drum, Steering with double T-cross section beam |
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Tyre | 12.00R20, radial tire |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kW |
| Starter | 7.5kW/24V |
-2. HOWO 6x4 Dump Truck Video.
-3. FAQ.
-. Terms of paymemt.
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Whats your delivery time.
20-25 working days after received the deposit.
-. What is your terms of shipment?
The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
